You need exact precision when positioning or sealing your assemblies correctly. Give us your specifications, and we will deliver precision-cut shim and gasket solutions. Artus has been providing shims and gaskets to every industry since 1941.

Experience and knowledge led us to become experts. Commitment to quality and service led us to our recognition. Now, our process is optimized to deliver the most efficient, consistent product.

Give us your blueprint specifications, and we will deliver your custom shims and gaskets in any shape and size anywhere in the world.

About Tooling:

We help you save without compromising on quality. We keep your costs to a minimum by using inexpensive steel rule dies and quality raw materials in large quantities, reducing material costs. Steel-rule dies can be produced in a matter of days, reducing lead times on initial orders for new shim or gasket designs. A single tooling charge lets you avoid hidden costs, and there are no set-up charges for subsequent orders.

Shim Stock Brochure



We can assist you with spec development, cost estimates, and delivery schedules for no additional charge. Get fast service and delivery, with orders shipped sooner in emergencies.

The Color Tells the Thickness

Color-coded products are available in aluminum and plastic for your convenience. Each color represents a specific shim thickness, making distinguishing between thicknesses quick and easy. With variations in shim thickness being as little as 0.00025”, differentiating by color instead of measuring shims drastically saves time and reduces errors.

View our aluminum and plastic shim color chart.

shim stock

Material Options

We offer five shim materials and three gasket materials

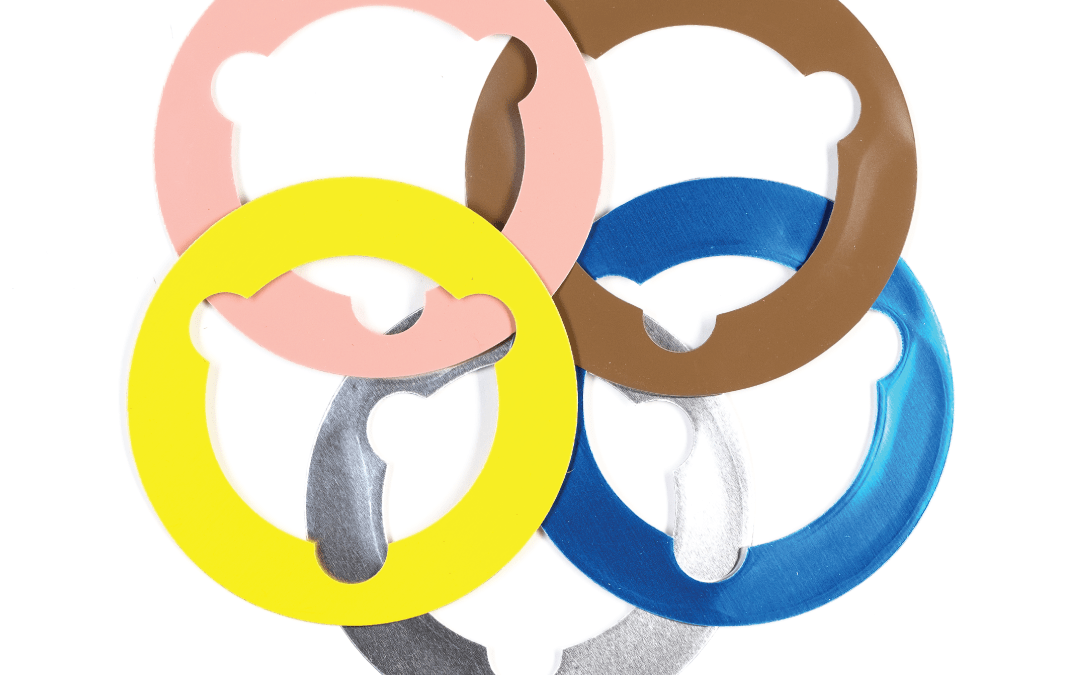

Color-Coded Plastic Shims

Artus plastic shims are remarkably durable, pliable, economical, non-hygroscopic, and impervious to oil for the exact positioning of your machines and equipment. Plastic shims are color-coded by thickness for quick and easy identification. View the thickness chart below to see the list of colors and sizes.

Custom dies can be made to cut plastic shims up to 42” in diameter in a single piece. Larger OD shims can be made in segments. Plastic Timken Shims are also available for cone-and-cup-adjusted tapered roller bearings (see Timken Chart).



Color-Coded Aluminum Shims

Non-compressible, burr-free, rust-proof, and long-lasting, Artus aluminum shims are ideal in operating temperatures over 500° F (260° C). Aluminum shims are color-coded by thickness for quick and easy identification. View the thickness chart to see the list of colors and sizes.

Custom dies can be made to cut metal shims up to 24” in diameter in a single piece. Larger OD shims require segmented dies. Aluminum Timken Shims are also available for cone-and-cup-adjusted tapered roller bearings (see Timken Chart).



Stainless Steel and Low Carbon Steel Shims

When you need shims to perform under extreme conditions, Artus stainless and low-carbon steel shims do the job like no other. Our laser technology assures superior quality steel shims that stand up to extreme conditions and demanding applications.

Our stainless-steel shims use Stainless Steel 300 Series Alloy, making them non-corrosive and rust-proof. Our low-carbon steel shims use Cold Rolled 1010 Steel, making them durable and economical. Aluminum shims are perfect for tool and die shops, machine repair, and bearing adjustments.

Custom dies can be made to cut metal shims up to 24” in diameter in a single piece. Larger OD shims can be made in segments.



Brass Shims

Artus manufactures the highest quality standard and custom brass shims to satisfy your most exacting tolerances and specifications. Artus Brass Shims are burr-free, heavy-duty, and always uniform in thickness. Artus Brass Shims use 70/30 B36 Cartridge Brass, which has the highest brass ductility, great strength, and impressive corrosion resistance.

Custom dies can be made to cut metal shims up to 24” in diameter in a single piece. Larger OD shims can be made in segments.



Gaskets

Artus manufactures custom gaskets in any size, shape, and quantity desired. Get the seal you need promptly with our efficient and economical gasket-cutting process. Our custom gaskets can be made in vegetable fiber, cork composition, and asbestos-substitute material. Contact us for help finding the material with characteristics best suited to your needs.

Custom gaskets are available in any required shape and quantity and have a variety of thicknesses from 0.0005” to 0.060”. Custom dies can be made to cut gaskets up to 42” in diameter in a single piece. Larger OD gaskets can be made in segments.

Find specifications for available shim sizes, temperature usage, and cone and cup-adjusted tapered roller bearing shims below.



Specifications

Thickness

Plastic (P)

Color-Coded Plastic Color

Aluminum (A)

Color-Coded Aluminum Color

Stainless Steel (SS)

Low Carbon Steel (LC)

Brass (B)

0.0005” (0.01mm)

P Silver

0.00075” (0.02mm)

P Gold

0.0015” (0.04mm)

P Purple A Uncolored

0.002” (0.05mm)

P Red A Red SS LC B

0.003” (0.08mm)

P Green A Green SS LC B

0.004” (0.1mm)

P Tan A Tan SS LC B

0.005” (0.125mm)

P Blue A Blue SS LC B

0.007” (0.18mm)

    A Natural SS LC B

0.0075” (0.19mm)

P Transmatte

0.010” (0.25mm)

P Brown A Brown SS LC B

0.012” (0.3mm)

    A Uncolored SS LC

0.0125” (0.31mm)

P Black         B

0.015” (0.4mm)

P Pink A Pink SS LC B

0.020” (0.5mm)

P Yellow A Yellow   LC

0.025” (0.6mm)

P White A White SS LC B

0.030” (0.75mm)

P Coral A Coral SS LC B

0.040” (1mm)

P Clear     SS LC

0.050” (1.25mm)

P Clear

0.060” (1.5mm)

P Clear     SS LC

0.125” (3.18mm)

          LC

Recommended Max Temperature Usage for Plastic Shims

Material

Available Thicknesses

Max Temp (in Fahrenheit)

Type-P (oriented polyester)

0.0005”-0.0125”

200° F

Type-G (PET-G)

0.015”-0.060” 140° F

Type-x (polycarbonate alloy)

0.015”, 0.020”, 0.030”

200° F

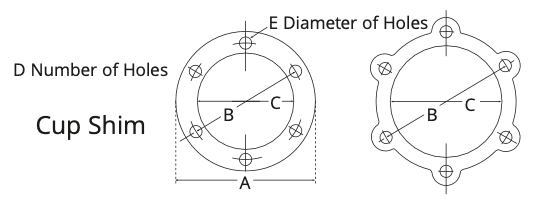

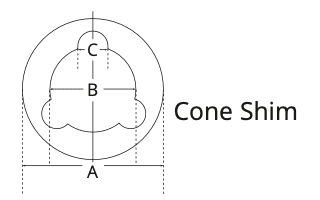

Shims for Cone and Cup Adjusted Tapered Roller Bearings



Artus Shim Number

Shim Dimensions

Bolts

A

Thickness

B

C

No. of Bolts

Size of Bolts

A50605

2-3/8

.005

1-3/8

9/16 3 1/2

A50606

  .0075

A50607

  .020

A50608

2-7/8 .005 1-3/4 9/16 3 1/2
A50609   .0075
ASO610   .020

ASO611

3-3/8 .005 2-1/4 9/16 3 1/2

ASO612

  .0075

ASO613



  .020

A45882

4-1/16 .005 3 11/16 3 5/8

A50633

  .0075

A45884

  .020

A45885

4-5/8 .005 3-1/2 11/16 3 5/8

A50634

  .0075

A45887

  .020

A50614



4-7/8 .005 3-1/2 13/16 4 3/4

A50615

  .0075

A50616

  .020

A50617

5-3/8 .005 3-1/2 13/16 4 3/4

A50618

  .0075

A50619

  .020

A50620

5-7/8 .005 4 13/16 6 3/4

A50621

  .0075

A50622



  .020

A50623

6-7/8 .005 5 1-1/16 6 1

A50624

  .0075

A50625

  .020

A50626

7-7/8 .005 6 1-5/16 6 1-1/4

A50627

  .0075

A50628

  .020

Equivalent number In Standard Cup Shims

Artus Shim Number

A

Artus Shim Number

B

C

D

E

0.005″ Blue

0.0075″ Transp. Matte

0.020″ Yellow

K-20605

K-20607 K-20620 A FB 6 2-3/8 A 6 1-7/8 1-13/32 4 9/32
K-20705 K-20707 K-20720 A FB 7 2-3/4 A 7 2-1/4 1-25/32 4 9/32
K-20805 K-20807 K-20820 A FB 8 3-1/2 A 8 2-3/4 2-1/32 4 13/32
K-20905 K-20907 K-20920 A FB 9 3-3/4 A 9 3 2-11/32 4 13/32
K-21005 K-21007 K-21020 A FB 10 4 A 10 3-1/4 2-19/32 4 13/32
K-21105 K-21107 K-21120 A FB 11 4-1/4 A 11 3-1/2 2-25/31 4 13/32
K-21205 K-21207 K-21220 A FB 12 4-1/2 A 12 3-3/4 3-1/32 4 13/32
K-21405 K-21407 K-21420 A FB 14 5 A 14 4-1/4 3-17/32 4 13/32
K-21505 K-21507 K-21520 A FB 15 5-1/4 A 15 4-1/2 3-25/32 4 13/32
K-21605 K-21607 K-21620 A FB 16 6 A 16 5 4-1/32 4 17/32
K-21705 K-21707 K-21720 A FB 17 6-1/4 A 17 5-1/4 4-9/32 4 17/32
K-21805 K-21807 K-21820 A FB 18 6-1/2 A 18 5-1/2 4-17/32 4 17/32
K-21905 K-21907 K-21920 A FB 19 6-3/4 A 19 5-3/4 4-25/32 6 17/32
K-22005 K-22007 K-22020 A FB 20 7 A 20 6 5-1/32 6 17/32
K-22205 K-22207 K-22220 A FB 22 7-1/2 A 22 6-1/2 5-17/32 6 17/32
K-22405 K-22407 K-22420 A FB 24 8 A 24 7 6-1/32 6 17/32
K-22505 K-22507 K-22520 A FB 25 8-3/4 A 25 7-1/2 6-9/32 6 21/32
K-22605 K-22607 K-22620 A FB 26 9 A 26 7-3/4 6-17/32 6 21/32
K-22705 K-22707 K-22720 A FB 27 9-1/4 A 27 8 6-25/32 6 21/32
K-22905 K-22907 K-22920 A FB 29 9-3/4 A 29 8-1/2 7-9/32 6 21/32
K-23005 K-23007 K-23020 A FB 30 10 A 30 8-3/4 7-17/32 6 21/32
K-23205 K-23207 K-23220 A FB 32 10-1/2 A 32 9-1/4 8-1/32 6 21/32
K-23405 K-23407 K-23420 A FB 34 11 A 34 9-3/4 8-17/32 6 21/32
K-23605 K-23607 K-23620 A FB 36 11-1/2 A 36 10-1/4 9-1/32 6 21/32
K-23805 K-23807 K-23820 A FB 38 12 A 38 10-3/4 9-17/32 6 21/32
K-24005 K-24007 K-24020 A FB 40 13 A 40 11-1/2 10-1/32 6 25/32
K-24105 K-24107 K-24120 A FB 41 13-1/2 A 41 12 10-17/32 8 25/32
K-24205 K-24207 K-24220 A FB 42 14-5/8 A 42 13-1/8 11-21/32 8 25/32
K-24405 K-24407 K-24420 A FB 44 15-1/2 A 44 14 12-17/32 8 25/32
K-24605 K-24607 K-24620 A FB 46 17 A 46 15-1/4 13-17/32 8 15/16
K-24805 K-24807 K-24820 A FB 48 18 A 48 16-1/4 14-17/32 8 15/16
K-25005 K-25007 K-25020 A FB 50 19-1/2 A 50 17-1/2 15-17/32 8 11/16
K-25205 K-25207 K-25220 A FB 52 20-1/2 A 52 18-1/2 16-17/32 8 11/16
